Cyprus is a sunny island, If you are not familiar with vacuum solar water heaters, please review the enclosed information. The advantages of this type of solar are many.

• Unique 360 degree design increases collection earlier and late in day.
• No antifreeze or other chemicals adding are requiring
• No thermal losses.
• Water remains hot inside tank for long time.
• Tube collectors free of corrosion and stone.
• Reduce electricity bills- Quick payback.
• Wind resistance.
• Five years guarantee.
• After sales service

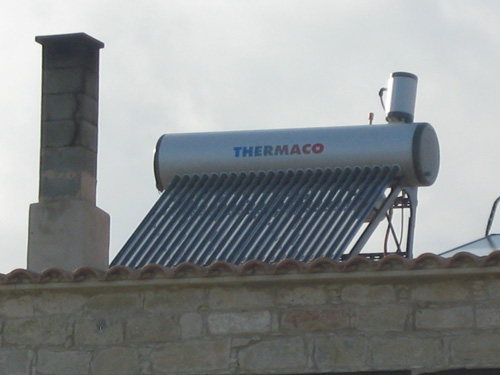

Why a vacuum? As you would know if you have used a glass lined thermos flask, a vacuum is an excellent insulator. This is important because once the evacuated tube absorbs the radiation from the sun and converts it to heat, we don't want to lose it!! The vacuum helps to achieve this. The insulation properties are so good that while the inside of the tube may be 150oC / 304oF , the outer tube is cold to touch. This means that evacuated tube water heaters can perform well even in cold weather when flat plate collectors perform poorly due to heat loss (during high Delta-T conditions).

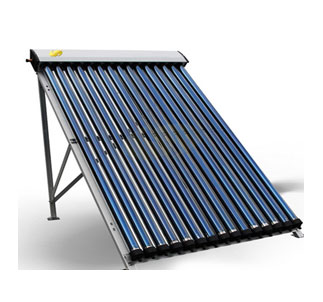

Evacuated tubes are the absorber of the solar water heater.

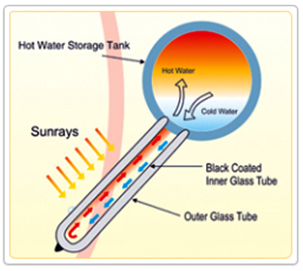

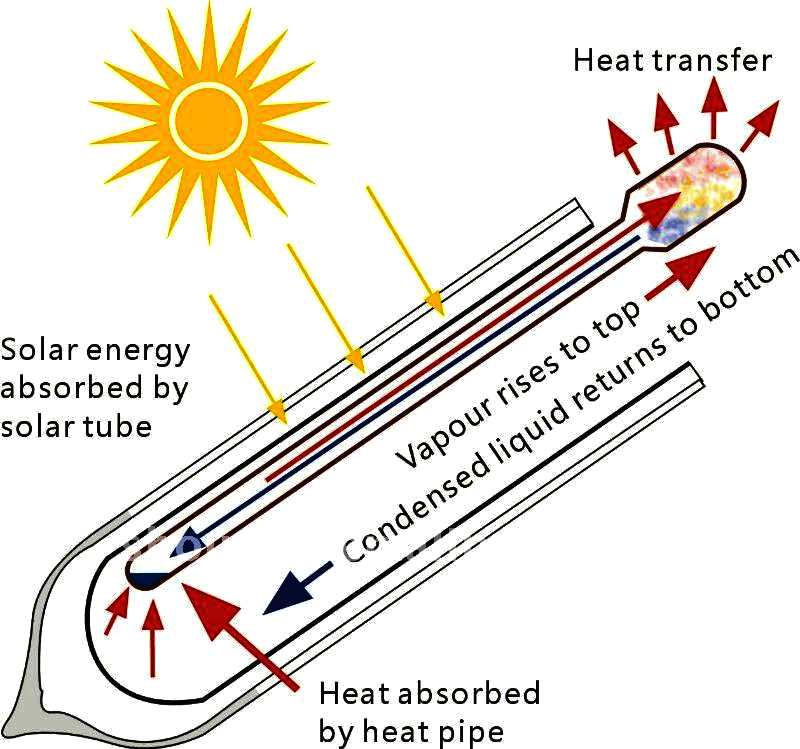

Vacuum tube, as shown in the sketch, is the main component, which absorbs solar energy. The vacuum tube is an assembly of two concentric, borosilicate glass tubes.

Air between the gap of two glass tubes is evacuated. It results in high level of vacuum, which acts as the best insulation to minimize the heat loss from inner tube. The black coating on the inner tube absorbs the solar energy and transfers it to the water. The water on upper side of Vacuum Tube becomes hot and thus lighter, so it starts moving upwards in the tank. At the same time cold water, which is heavy, comes downward from the tank and is stored at the bottom. The phenomenon is called as natural Thermosyphon circulation, which occurs in every tube.

CHARACTERISTICS

• The water is heated by the heat pipe rapidly.
• There is no water in the vacuum tube, so the tube will not break in the winter.
• It can be combined with the architecture perfectly.
• It can be combined with existing pipeline.
• It will be affected by the local water quality, it doesn't suit hard water.
• It can be still operate in the event of occasional tube breakages.

Material

1. Outer tank : Alnico – 1.5 mm
2. Frame is made of Alnico
3. Vacuum tube size – 58*1800

Available size: 25 no heat pipe, Area : 3.310 sq. m

Extra heat exchanger for boiler connection

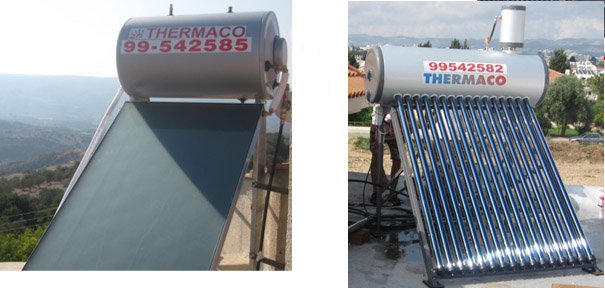

Pressure Flat Plate Water Heater

Characteristics

• Longest life

• Cooper Cylinder. (2 mm)

• Boiler pressure of 20 bar.

Higher pressure than common boiler.

This due to the special manufacturing

Of hot water cylinder. Only one vertical laser welding takes place.

• Higher Efficiency

• High quality collectors which boils water even there is no sun shine.

• Safety from ice and salt

It protected from ice, salt due to double cylinder

closed system.

• Excellent appearance

There are no screws on external cylinder’s side.

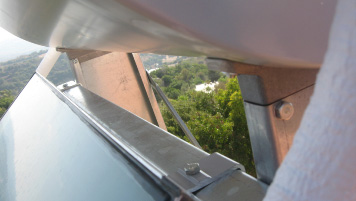

The solar’s bracket is connected with screws, no welded

so there is no corrosion problem.

• Five years warranty


  • Άριστη ποιότητα

  • Όλα τα κολλήματα είναι με τεχνολογία Laser

  • H βάση είναι κατασκευασμένη από βιδωτά γαλβανισμένα μέταλλα.

  • Αισθητική

  • Το εξωτερικό περίβλημα του μπόιλερ είναι πρεσαριστό χωρίς βίδες. Υλικό μπόιλερ -Χαλκός 2ΜΜ.(120lt -250lt)

  • Μακροζωία.

  • Ίσως το μοναδικό μπόιλερ με τα πιο λίγα κολλήματα. Λόγο της ειδικής κατασκευής το μπόιλερ αντέχει 20 bar πίεση.

  • Απόδοση.

  • Μηδενικές θερμικές απώλειες . Διατηρούν το νερό ζεστό περισσότερο χρόνο τον χειμώνα. Το Κλειστό κύκλωμα είναι με μανδύα και προσφέρει ζεστό νερό γρηγορότερα. Το σύστημα αυτό μένει ασφαλές από τον παγετώνα και τα άλατα.

  • Πέντε χρόνια εγγύηση.

  ΕΙΔΟΣ/ΤYPE Ηλιακός Θερμοσίφωνας solar water system	ΑΡΙΘΜΟΣ ΣΥΛΛΕΚΤΩΝ/ COLLECTOR NUMBER	ΜΕΓΕΘΟΣ ΣΥΛΛΕΚΤΗ/ COLLECTOR SIZE	ΕΠΙΦΑΝΕΙΑ/ COLLECTOR'S  SURFACE
  ΗΛΙΑΚΟ 120 ΛΤ/ SOLAR SYSTEM 120 LT	1	105 x 160 x 8,6	1,68 m²
  ΗΛΙΑΚΟ 160 ΛΤ/ SOLAR SYSTEM 160 LT	1	120 x 200 x 8,6	2.4 m²
  ΗΛΙΑΚΟ 200 ΛΤ/ SOLAR SYSTEM 200 LT	2	105 x 160 x 8,6	3,36 m²
  ΗΛΙΑΚΟ 250ΛΤ/ SOLAR SYSTEM 250 LT	2	100 x 200 x 8,6	4 m²




Αισθητική - Excellent appearance

Low Pressure Solar Water Heater

This type uses the all- glass evacuated solar collector tubes as heat-absorbing element. The high vacuum degree of clearance between the outer and the inner tube reduces the heat emission which is caused by convection and conduction. The layer films of all-glass evacuated tubes transfer the sun energy into heat energy. The high absorption and low emittance rate of p.t thermaco' layer firms is unique. Depending on the different density between hot water and cold water, a water flowing cycle is created in the tube. Hot water flows automatically upwards while the cold water flows down. The water in the storage tank will be heated from natural circulation.

Material

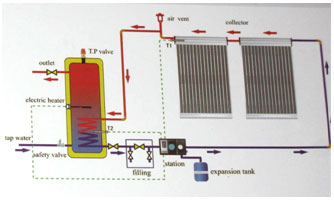

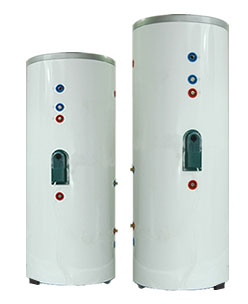

Split Pressurized Water Tank

CHARACTERISTICS

1. The upright tank can keep the water temperature at different level. It can heat the top water instantly. The special structure can prevent from the cold and hot water together.
2. The tank is located in the building; the hot water loses less energy than the normal one.
3. Back up with electric heater so that the day without sunshine hot water can also used.
4. Capacity: 100L, 250L.
5. Inner Tank: Stainless steel SUS 316-1.2mm/ Outer Tank: Painted steel-0.5mm/Stainless steel-0.5mm Insulation: 45mm Polyurethane

Available model –100 lt, 250 lt with two coils.

Inner tank Material – SUS316L *1.2 mm

PRICE LIST

• V.A.T is included in the above prices
• Five years guarantee in cylinder and collectors

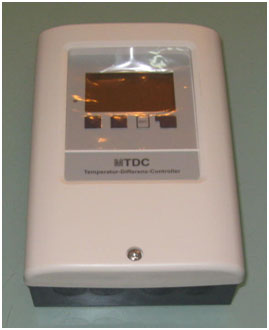

Main functions:

1. Query temperature and working state of sensors
2. Temperature difference circulation
3. Hot water pipe circulation
4. Electric heating
5. High temperature protection
6. Anti-freeze protection
7. Sterilization protection

Main functions:

Line menu-style touch key, find wide applications, operate concisely multi-timing mode, control on/off by one key, and make timing process easy and reliable, more convenient, safer, and more utility.

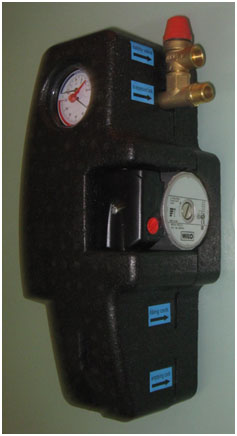

Technical Parameters:

1. Type: TYY-III (CE certification)
2. Exterior size : 395*170*145mm
3. Full power of recycle pump 220V
4. Temp and pressure gauge: 1 MPa, 120 0 C
5. Pressure relief valve : 0.8 1 MPa
6. Flowmeter : 2-8 L/min

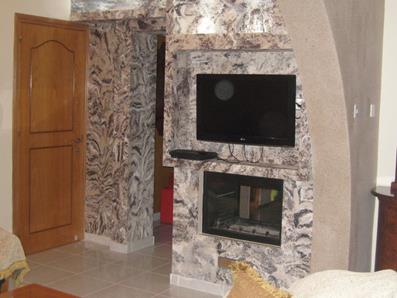

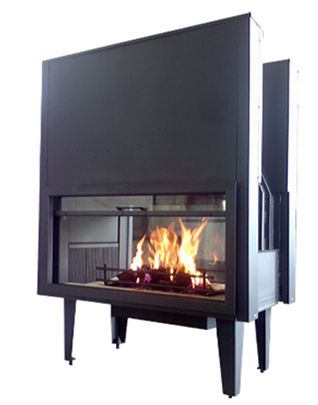

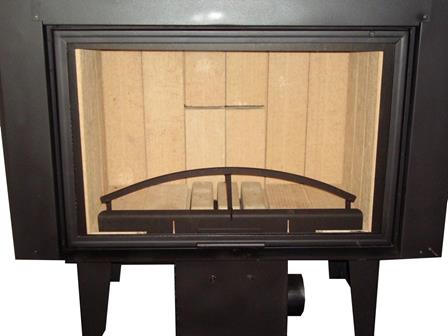

Fireplaces - Τζάκια

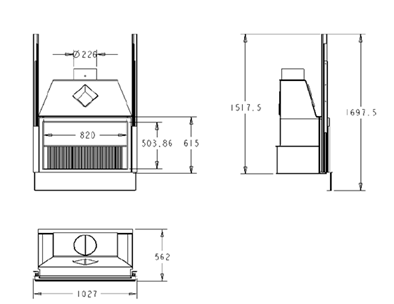

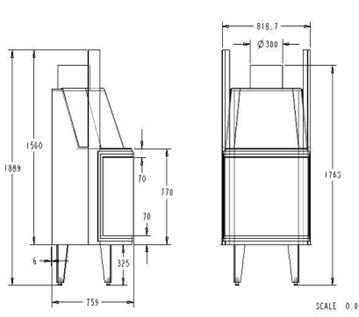

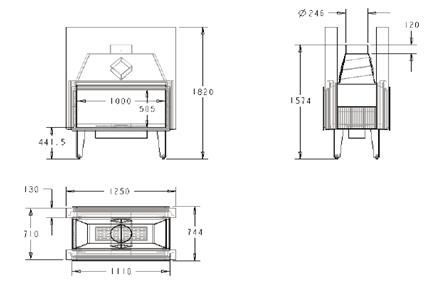

ΤΖΑΚΙ - BOILER   BF3 T

ΑΠΟΔΟΣΗ 30 KW

ΕΠΕΝΔΥΣΗ – ΥΨΗΛΗΣ ΠΙΟΤΗΤΑΣ

 ΑΥΣΤΡΙΑΚΑ  chamotte modules 5 cm ή  ΜΑΤΕΜΙ

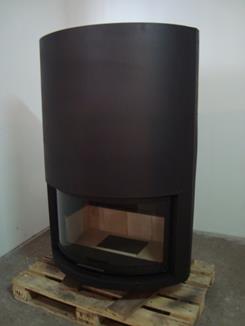

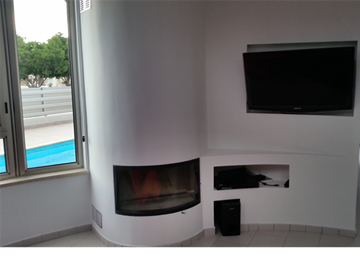

TZAKI ΣΤΡΟΓΥΛΟ AR

ΑΠΟΔΟΣΗ =20 KW

ΕΠΕΝΔΥΣΗ =  ΥΨΗΛΗΣ ΠOΙΟΤΗΤΑΣ

ΑΥΣΤΡΙΑΚΑ  chamotte modules 5 cm

TZAKI ΔΙΠΛΟ (Σε διάφορες διαστάσεις)

ΑΠΟΔΟΣΗ= 18 ΚW

ΕΠΕΝΔΥΣΗ – ΥΨΗΛΗΣ ΠΙΟΤΗΤΑΣ

ΑΥΣΤΡΙΑΚΑ  chamotte modules 5 cm  ή  ΜΑΤΕΜΙ

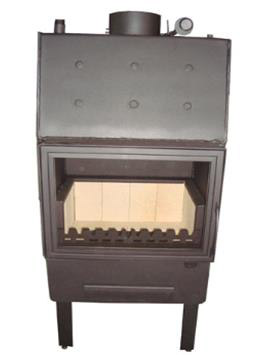

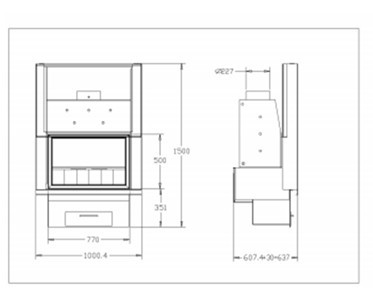

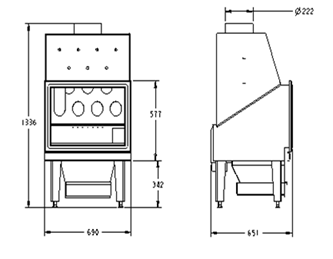

TZAKI- BOILER  BF80

ΑΠΟΔΟΣΗ =   30 Kw

ΕΠΕΝΔΥΣΗ = 5 CM  Austrian chamotte

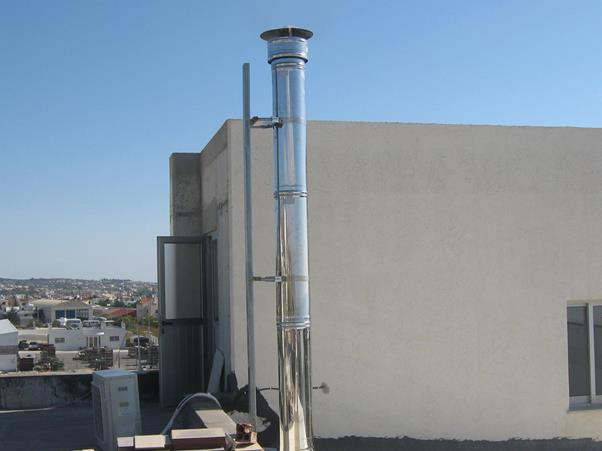

ΦΟΥΓΑΡΑ
